2005 Fitzroy Yachts 123' _{(37.49 m)}

OVERVIEW

When the current American Owners took possession of ANEMOI (previously LUDYNOSA G and built as HELIOS), they embarked upon a nine month $3M comprehensive refit including mechanical systems, operating and monitoring systems and cosmetics both interior & exterior. (See Maintenance history for more details).

• Dubois/Fitzroy designer-build package withstands the test of time in regard to styling and operations
• ANEMOI has maintained Lloyds Classification since build
• Currently operated as private vessel but previously maintained a superb charter calendar

UPGRADES

2022

• Steering System, Wagner 2 station power assisted- Full service and rebuild
• Air conditioning chiller- new
• IMARSAT C- new
• Windlass & new motors- new
• Apple TV & Plex media system and Sonos audio
• Ships coms PC and ships navigation PC- new
• Siemens induction cooktop, 5 burner- new
• Smeg 700mm oven- new
• Miele commercial dishwasher- new
• Miele commercial washing machine & drier- new

2021

• Simrad GC80 Gyro Compass- new
• Passarelle- full rebuild
• New Atlas shore power converter

2019

• Shafts & Propeller- Hundested rebuild
• Staysail and stay- new
• Mast and boom paint- new
• Rod rigging package- new
• Bow thruster- new
• Stern thruster- new leg and full rebuild
• Sewage Treatment Systems- full rebuild
• 2x KVH antenna- new
• New Furuno radar
• Miele 2 burner induction hob- new
• Miele coffee machine- new

2018

• Removal and renewal of all exterior teak decks
• Complete hull and superstructure paint restoration including introducing a new color scheme
• Removal of existing generators and replacement of 2x 50kW Northern Lights Generators with a new paralleling system
• Complete Top & Bottom End (Zero Hour) rebuild of Caterpillar 3406E Main Engine
• All new North 3DI sail inventory including Main, Reacher, Blade and Spinnaker
• Refit of Interior spaces including headliners, soft goods and addition of pullman bunks
• Replacement of AC system including Chillers and Air Handlers throughout the vessel
• Complete replacement of original PLC monitoring system with Boning ship's monitoring and control system including hydraulic controls
• All new Electronics packages including:
• New H5000 B&G and NMEA 2000 backbone
• New navigation electronics
• New AV system throughout
• New camera System

GENERAL

• Type: High Performance Fast Cruising Auxiliary Sloop
• Classification: Lloyds, MCA +100A1 SSCG6
• Flag: George Town, Cayman Island
• LOA: 123ft (37.5m)
• LWL: 111ft (33.84m)
• Beam: 27ft (8.26m)
• Draft: 13.12ft (4m)
• Gross Tonnage: 170 tonnes
• Builder: Fitzroy Yachts New Zealand
• Exterior Designer: Dubois Naval Architects
• Interior Designer: Redman Whitely Dixon
• Construction: Aluminum Hull, Carbon Rig & Boom, Teak laid decks
• Paint: Corinthia Blue and Matterhorn White
• Tank Capacities: Fuel 4148 US gallons (15,700 liters); Water 1427 US gallons (5,400 liters); Auxiliary waste 106 US gallons (400 liters); Grey/Black Water 251 US gallons (950 liters)

ACCOMMODATIONS

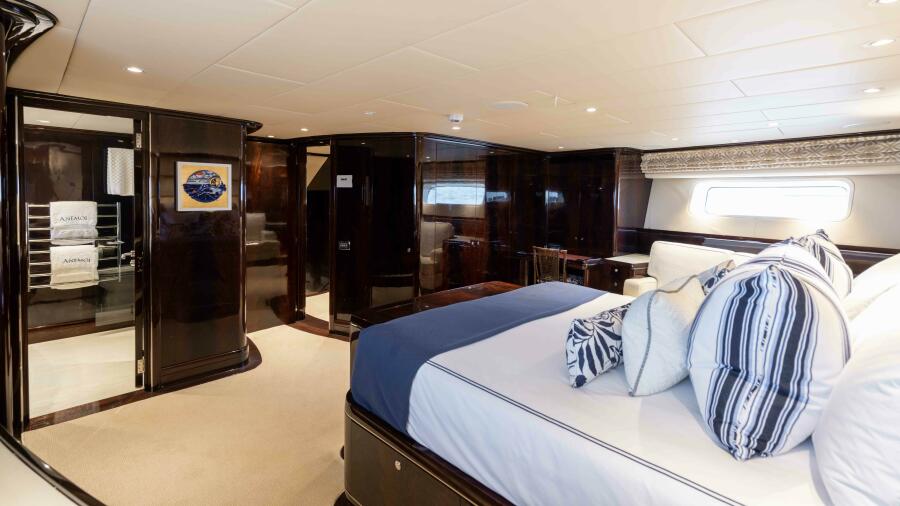

Owner's Stateroom

• 1x Master cabin with super king size bed

Guest Staterooms

• 1x VIP cabin with king size bed
• 2x Twin cabins (Each with a pullman bunk)
• Crew: 3x cabins, all ensuite, accommodating up to 6 crew

Sundeck

• Outside lounge area above pilot house
• Foredeck- tender-well converts to a tented lounge area
• Aft Deck- a deisnger composite bimini. High-tech fiberglass composite awlgripped structure and integrated TV

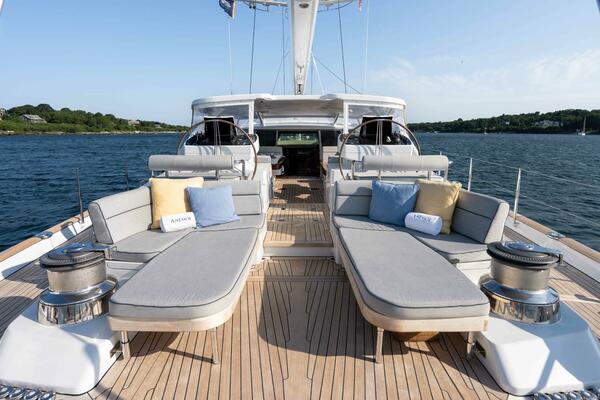

Cockpit

• Dual convertible tables, to full size dining table or low coffee table

Upper Salon

• Automatic doors
• Full bar to port and an electric elevating table that extends to a six setting table
• Pilot house helm area retracts at a touch of a button flushing countertops for entertaining

Main Salon

• Large hull mounted windows to port and starboard for natural light
• Dining table to port seats eight
• The lounge to starboard is equipped with a state of the art entertainment system and a 50" LCD flat screen

Galley

• 1x Siemens 5 burner gimballed hob
• 1x Miele 2 burner induction hob
• 1x Smeg gimballed 700mm oven
• 1x Miele coffee machine with cup warming drawer
• 1x Miele commercial dishwasher
• Hoshizaki HR 120S 1,042 liter 4 door galley fridge
• Large custom under sole freezer
• Custom bar refrigerator
• Custom cockpit drinks cooler
• 1x Hoshizaki icemaker

Laundry

• 1x Miele commercial 8kg washing machine
• 1x Miele commercial drier

MACHINERY

• Main Engines: 700hp Caterpillar 3406E- full zero hours rebuild in 2018
• Engine hours: 16,500 (Feb 2023)
• Gear Boxes: ZF 350A reverse reduction gear box
• Shafts & Propellers: Hundested VP7- rebuild in 2019
• Speed: 11-12 knots cruising; 13-14 knots max
• Long Range: Economical range of 3000 miles at 10 knots
• Fuel Consumption: 1,450 rpm 16 US gallons per hour; 1,800 rpm 26 US gallons per hour
• Generators: 2x 50kW 400V 50Hz Northern Lights Generators
• Generator Hours: 7,500 & 8,000 (Feb 2023)
• Electricity: 220v 50hz
• Shore Power: Atlas Shore Power Classic II
• Converter: Atlas worldwide shower power converter
• Batteries: Service batteries: 600amp hour gel; Radio batteries: 225 amp hour gel; Emergency batteries: 225 amp hour gel

EQUIPMENT

Ancillary

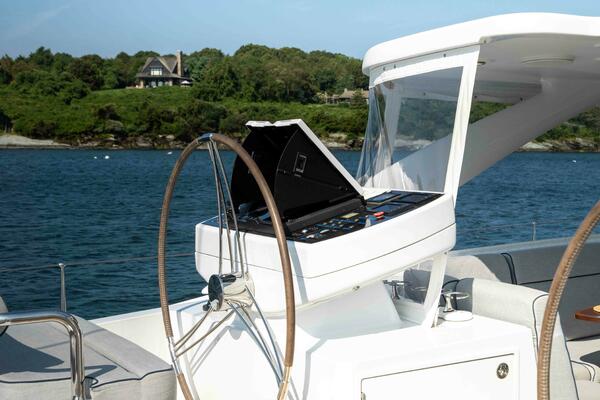

• Steering System: Wagner 2 station power assisted
• Bow Thruster: 1x 60hp Lewmar retractable bow thruster
• Stern Thruster: 1x 60hp Lewmar retractable stern thruster
• Fire/Bilge Pump: 1x Gianneschi emergency fire bilge pump, 1x 400V AC main fire pump, 1x hydraulic bilge pump, Separate bilge stripping system with Pneumatic pump
• Water Makers: 1x HEM 30 series with capacity to produce approximately 600 liters per hour
• Sewage Treatment Systems: Hamman sewage treatment system
• WC's: Actana water flush
• Air Conditioning: Cruise air 3 stage chilled water system 150,000 BTU's; 15 air handler units located throughout the yacht; 3 make up A/C units

Communication

• Magnetic Compass: 2x Ritchie compass
• Gyro Compass: New Simrac GC80 Gyro compass
• Automatic Pilot: B&G H5000 autopilot
• Log/Echo Sounder: B&G log
• Radar: 1x Furuno FAR2218. 72nm
• GPS: 2x Furuno GP32 receivers
• Chart Plotter: 2x nav computers with separate TimeZero- new
• Wind Instruments: Brookes & Gatehouse H5000 AIS

Deck

• Anchor Windlass: 2x Maxwell 6000
• Ground Tackle: 2x 185kg CQR stainless steel bow anchors
• 2x 120m stud linked anchor chains
• Passarelle: Hydraulic full function
• Side Boarding Ladder: Hydraulic retractable self-leveling

Audio/Visual Entertainment Systems

• Televisions: 1x 48" 4K television (main salon); 1x 40" LED 4K screen (Owner's cabin); 3x 24" LED screens (guest cabins); 2x 24" LED (crew mess); Cockpit TV 1x 48" 4K
• Apple TV & Plex Media System
• Stereo Music System: Sonos

Office

• Computers: 1x ships coms PC; 1x ships navigation PC; 2x computer UPS
• Photocopier/Printer: 1x Epson multifunction printer/copier/scanner/fax

Safes

• 2x safes (in Owner's and Captain's cabins)

TENDER & WATERSPORT

• Ribeye 600 RIB Tender with Yamaha outboard, 115hp; Length: 19'6", Beam: 16'5", Max speed: 34 knots
• 1x Wakeboard
• 2x Water Ski's
• 3 person Jobe Air Stream
• 2x Standup paddle boards
• Various snorkeling gear
• 2x Scuba equipment
• 1x Bauer Dive compressor
• 4x Fishing gear
